Crazy Iron Crash Bars and PRO Cage for Kawasaki Z750 (2005–2006)
Crazy Iron offers custom crash protection for a wide range of motorcycles, including less common models. One example is the Kawasaki Z750 (2005–2006). In this case, a customer got their 2006 Z750 to our workshop for a custom solution. We developed both compact crash bars and a full crash cage (PRO series) for this model.
Crash Bar Development Process
To create crash bars for the Kawasaki Z750, we followed a detailed, step-by-step process:
Identified appropriate mounting points
Installed custom-made brackets, plates, tubes, and spacers
Connected elements with precision-bent tubing
Evaluated rider comfort and verified that lean angle was preserved
Created a prototype and tested its strengths and weaknesses
Finalized the design, welded the parts, painted them, and completed installation

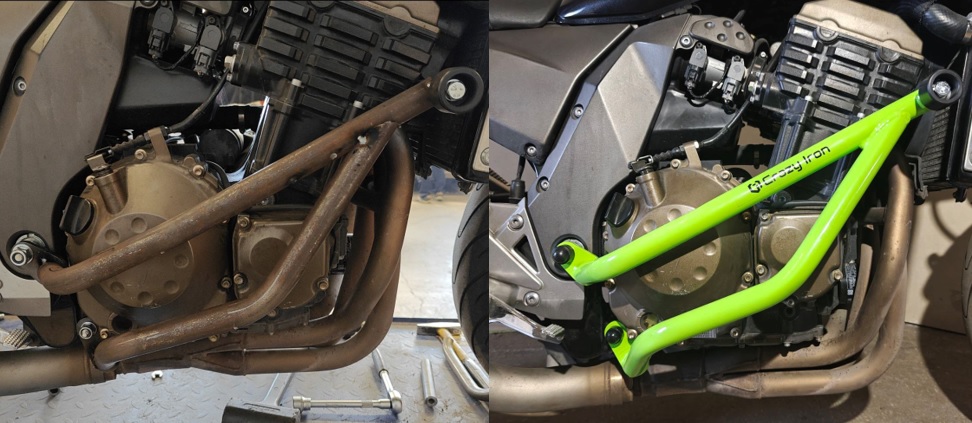

The crash bars were powder-coated in bright green per the customer’s request. The final result is a compact, functional, and visually striking protection system.
PRO Crash Cage for Kawasaki Z750
While we usually specialize in crash cages, the Kawasaki Z750 presented unique challenges in terms of mounting point complexity. For this reason, a PRO crash cage for this model had not been available before. However, once the bike was in our workshop, we designed and manufactured a complete cage for it.
Crash cages differ from crash bars by having:
Two main mounting points
A third connection point linked by a brace to the opposite side
Increased rigidity for better protection during impacts or stunts
For the Kawasaki Z750, we used custom bracket plates and slightly rotated one of the sliders to ensure proper alignment and functionality.
Crash Cage (PRO Series) Features:
Two sliders per side
Built from 32 mm steel tubing
Reinforced for high-impact protection and stunt riding
Finished in matte grey for demonstration purposes
Also available in black or custom powder-coated colors
Crash Bars Features:
Lightweight and compact
Three independent mounting points on each side
Made from 27 mm tubing
One slider per side
Available in black or custom colors
Your Options
If you own a Kawasaki Z750 (2005 or 2006), you now have two protection options from Crazy Iron:
Compact crash bars for everyday use and lightweight protection
PRO crash cage for heavy-duty protection, stunt use, and maximum structural integrity
How to Order
You can place an order directly on our website. If you have additional questions or would like a custom color, feel free to contact us through our online form or direct message.
